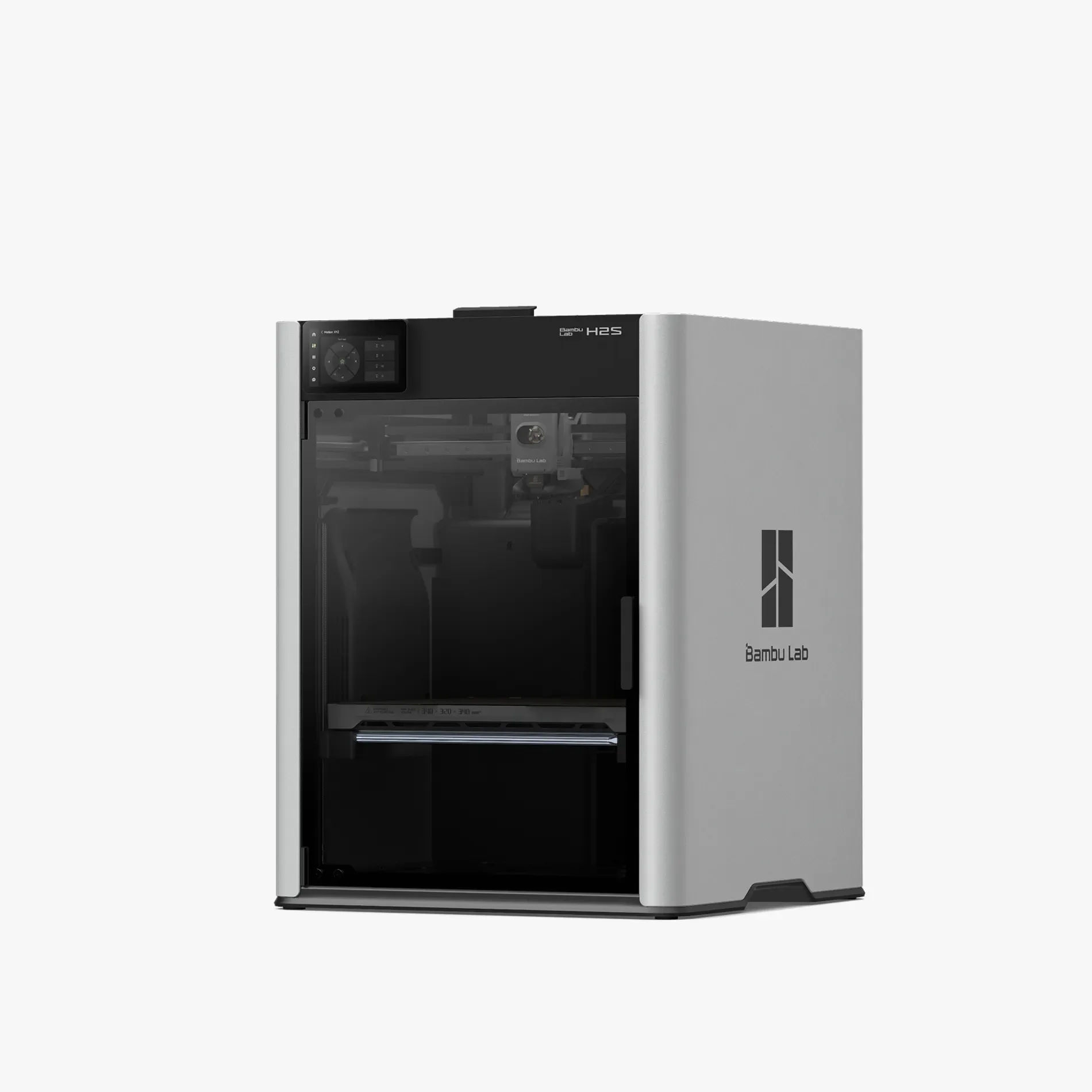

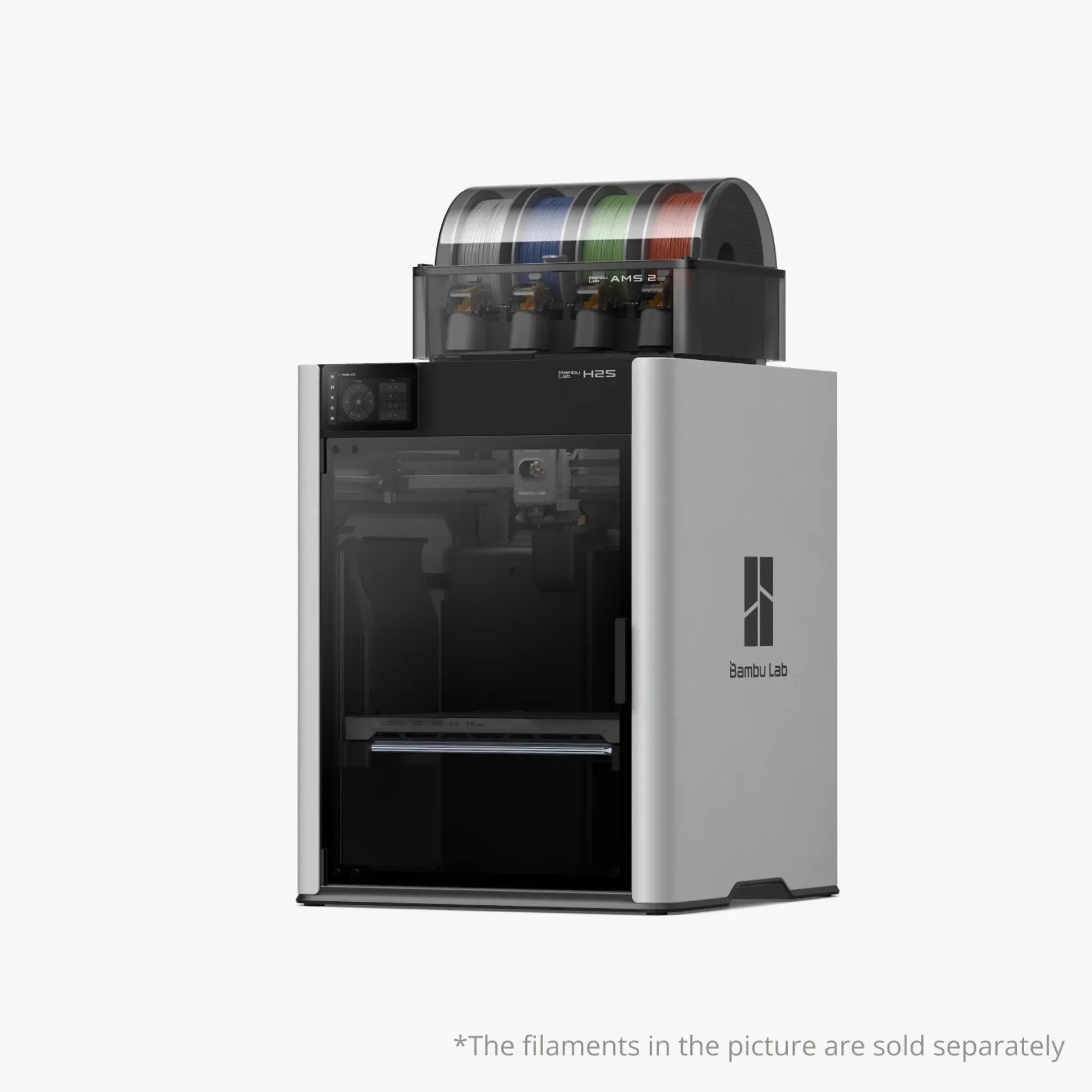

Bambu Lab H2S

Крупноформатный профессиональный принтер с возможностью апгрейда до лазерной резки

Цена: 139900 руб.

• H2S - 139900 руб.
• H2S AMS Combo - 169900 руб.
• H2S Full Combo - 189900 руб.

• Printing Technology: Fused Deposition Modeling

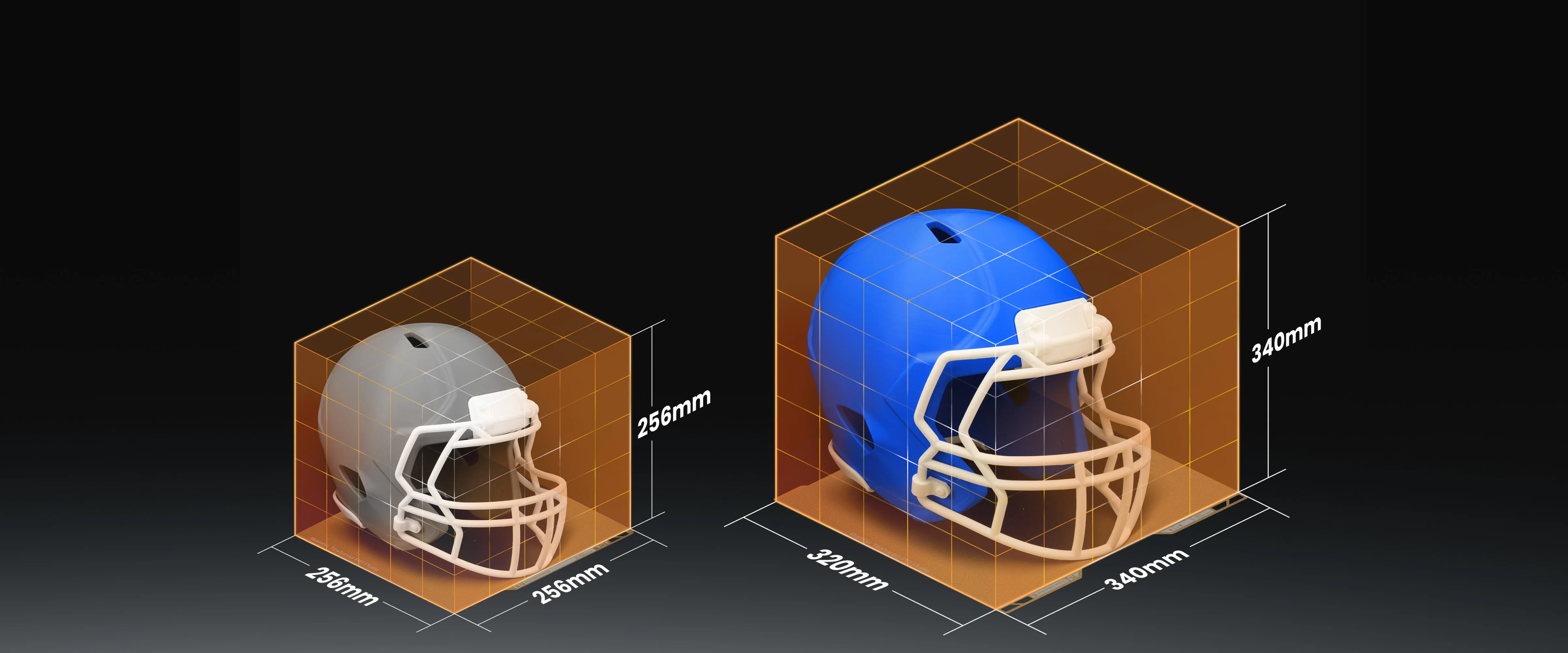

• Build Volume(W*D*H): 340*320*340 mm³

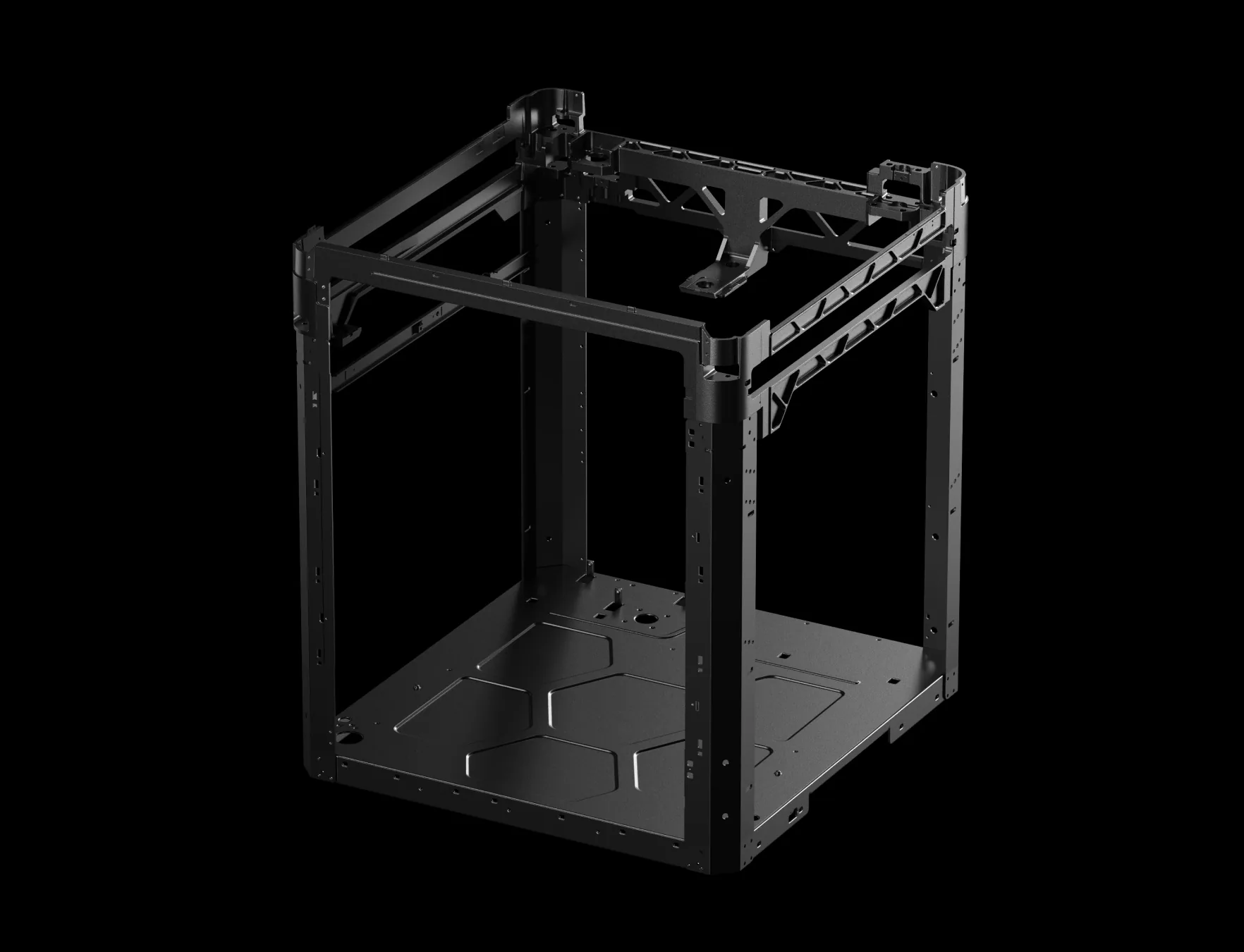

• Chassis & Shell: Aluminum and Steel

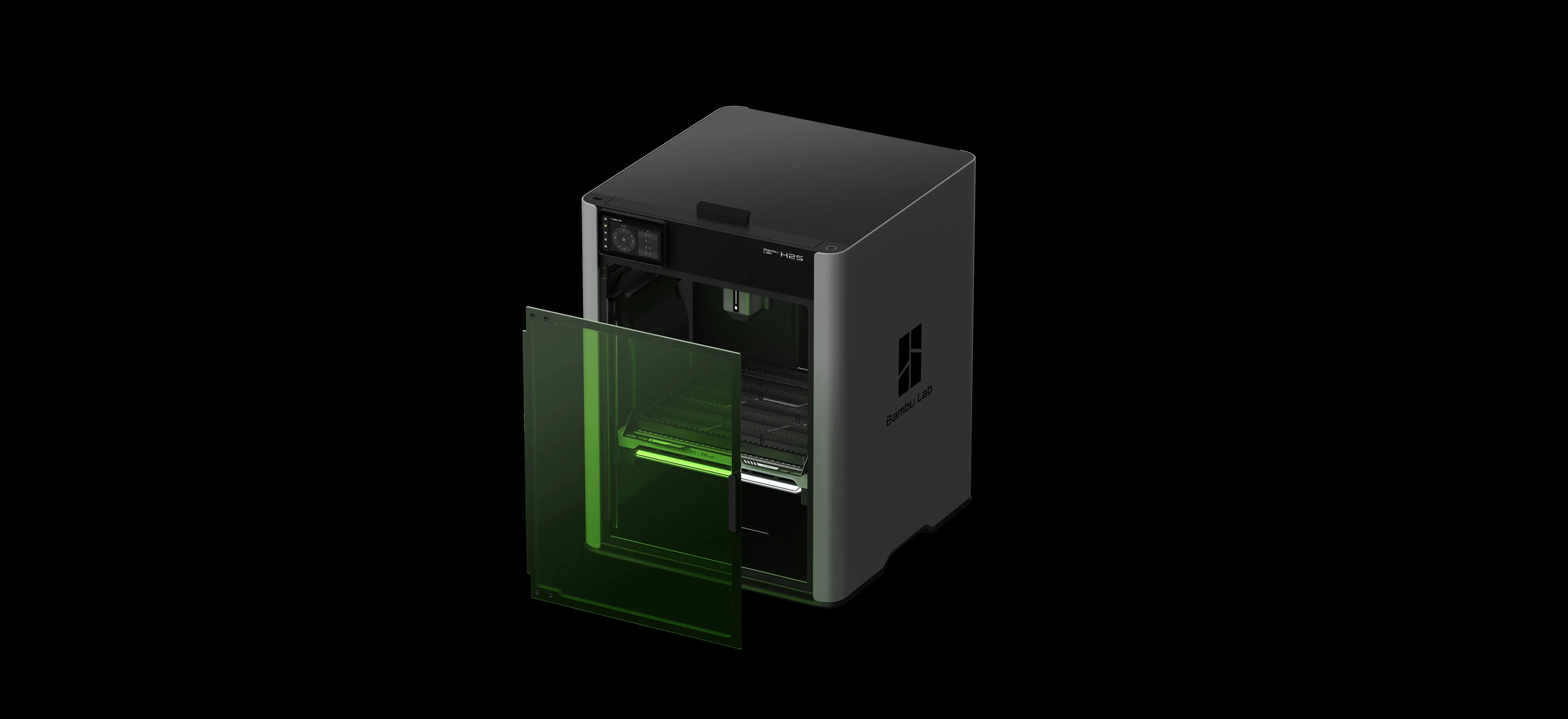

• Laser Safety Windows: Equipped on Laser Edition, normal H2S can upgrade through Laser Upgrade Kit

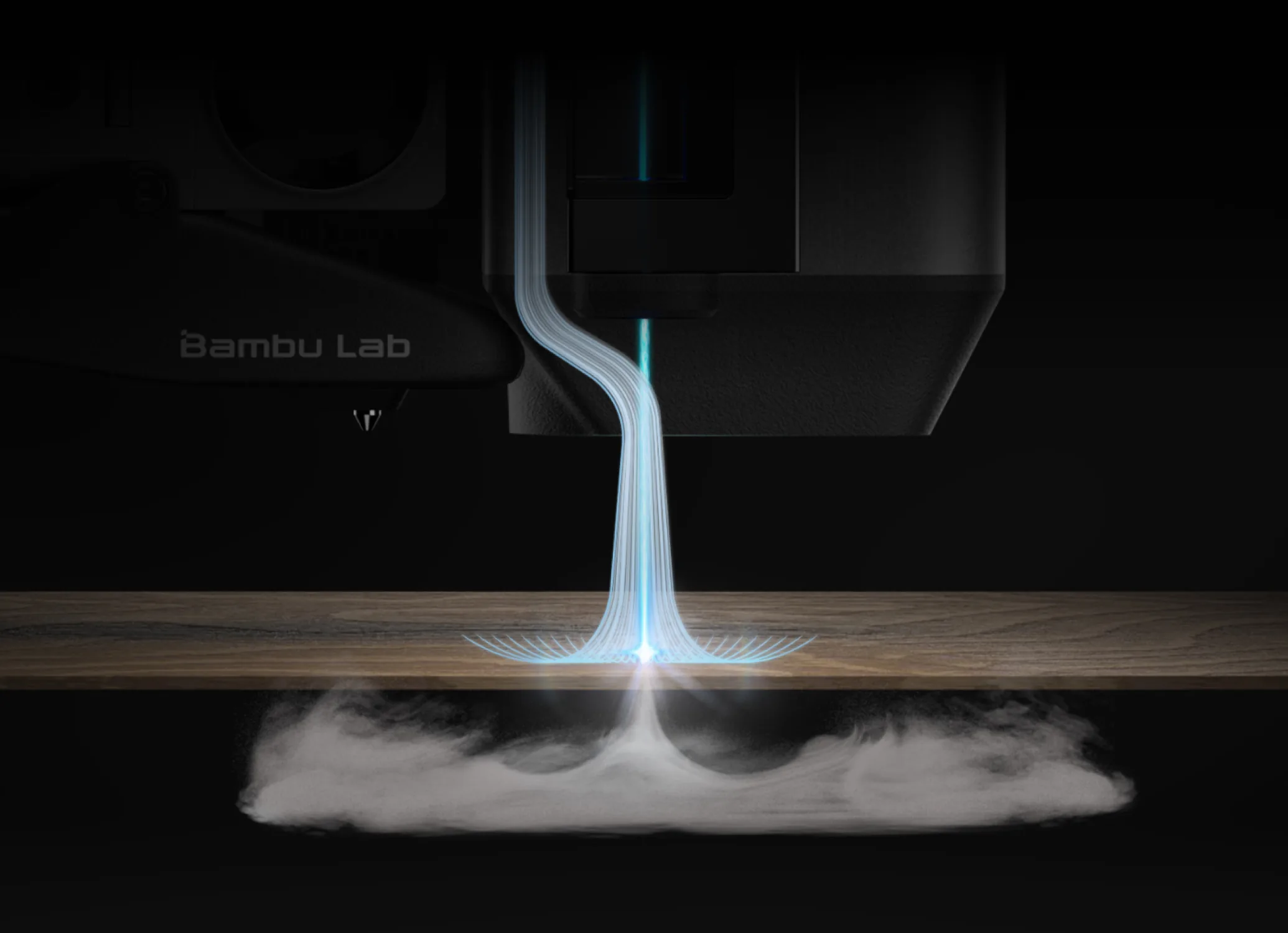

• Air Assist Pump: Equipped on Laser Edition, normal H2S can upgrade through Laser Upgrade Kit
• Physical Dimensions: 492*514*626 mm³
• Net Weight: 30 kg
• Hot End: All Metal
• Extruder Gear: Hardened Steel
• Nozzle: Hardened Steel

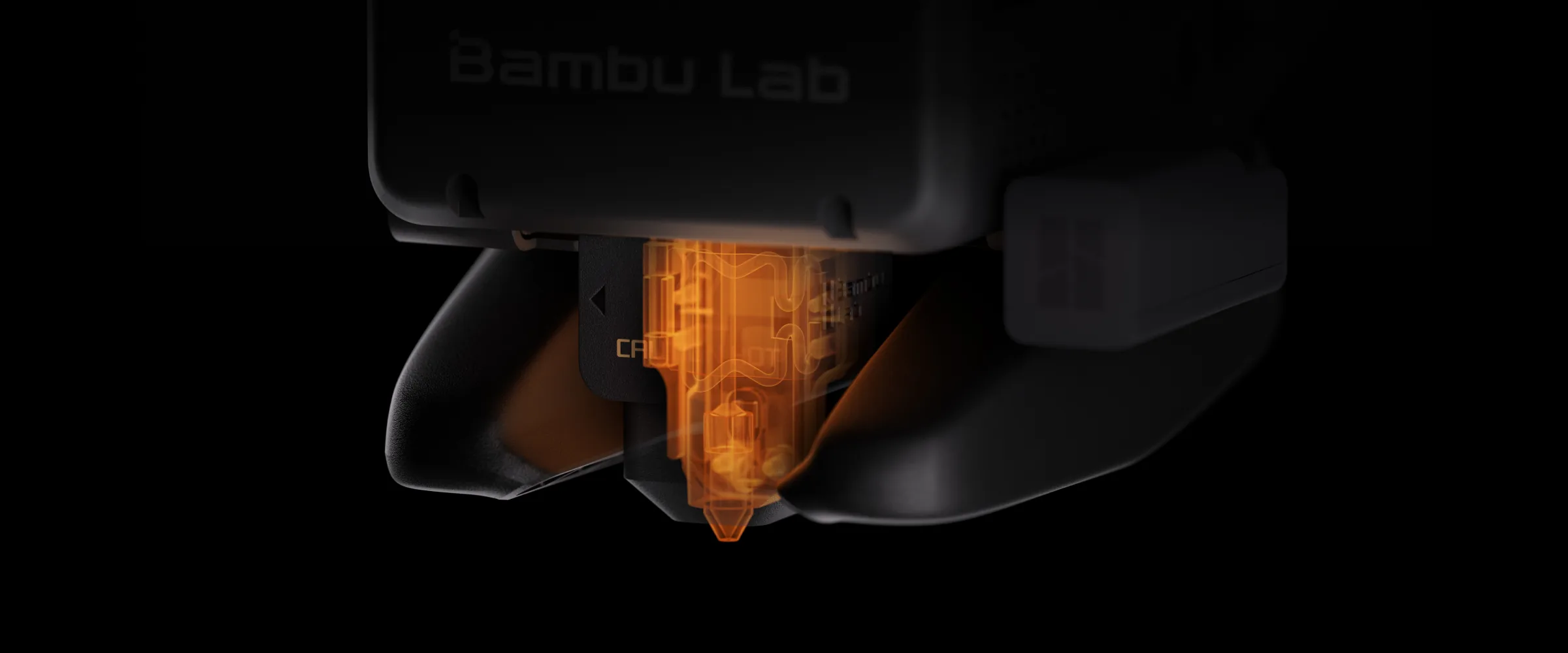

• Max Nozzle Temperature: 350 ℃
• Included Nozzle Diameter: 0.4 mm
• Supported Nozzle Diameter: 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
• Filament Cutter: Built-in
• Filament Diameter: 1.75 mm
• Extruder Motor: Bambu Lab High-precision Permanent Magnet Synchronous Motor
• Supported Build Plate Type: Textured PEI plate, Smooth PEI Plate
• Max Heatbed Temperature: 120 ℃
• Max Speed of Toolhead: 1000 mm/s
• Max Acceleration of Toolhead: 20,000 mm/s²
• Max Flow for Hot End (Standard Flow Hot End): 40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 ℃ printing temperature)
• Max Flow for Hot End (Optional High Flow Hot End): 65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 ℃ printing temperature)

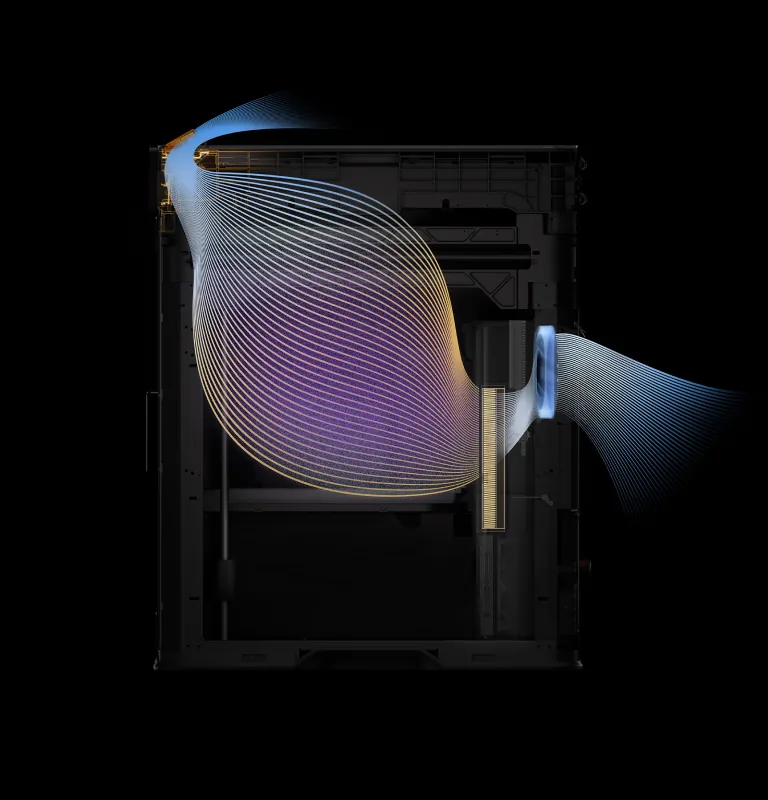

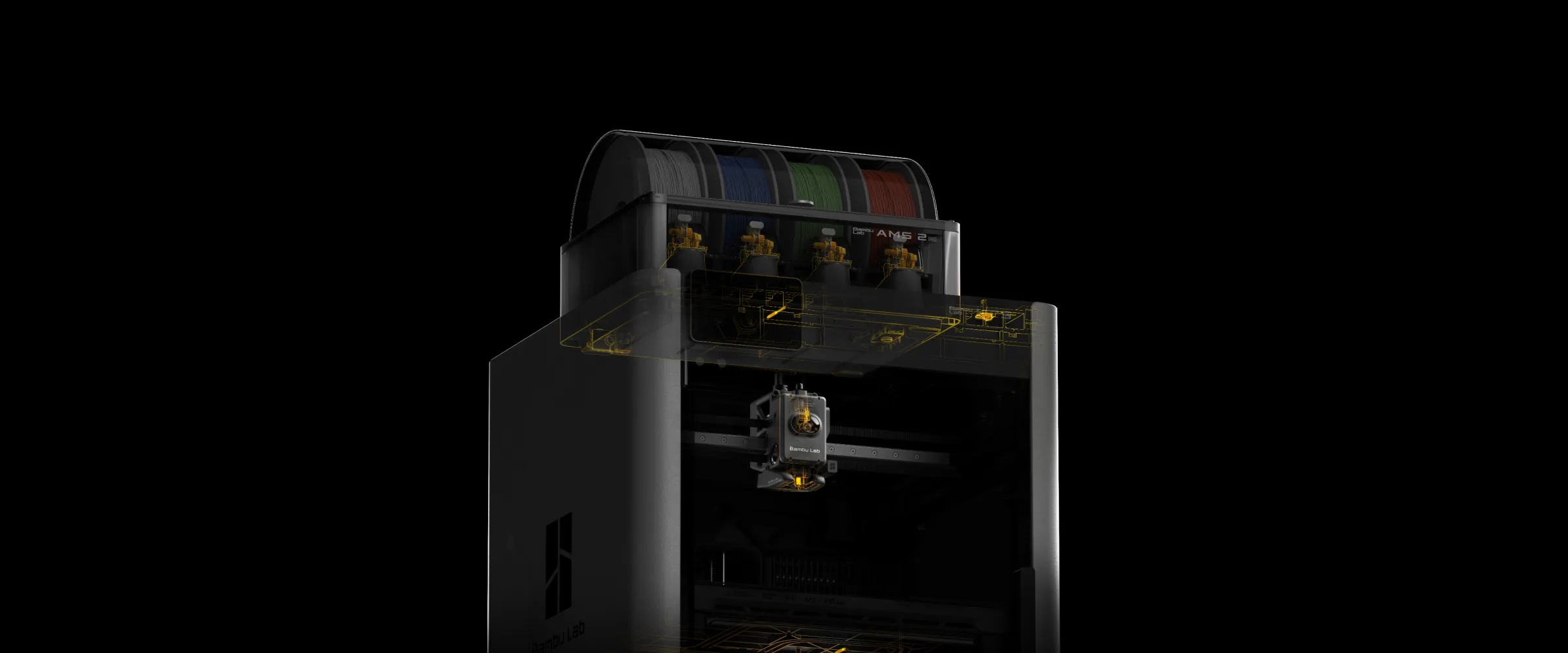

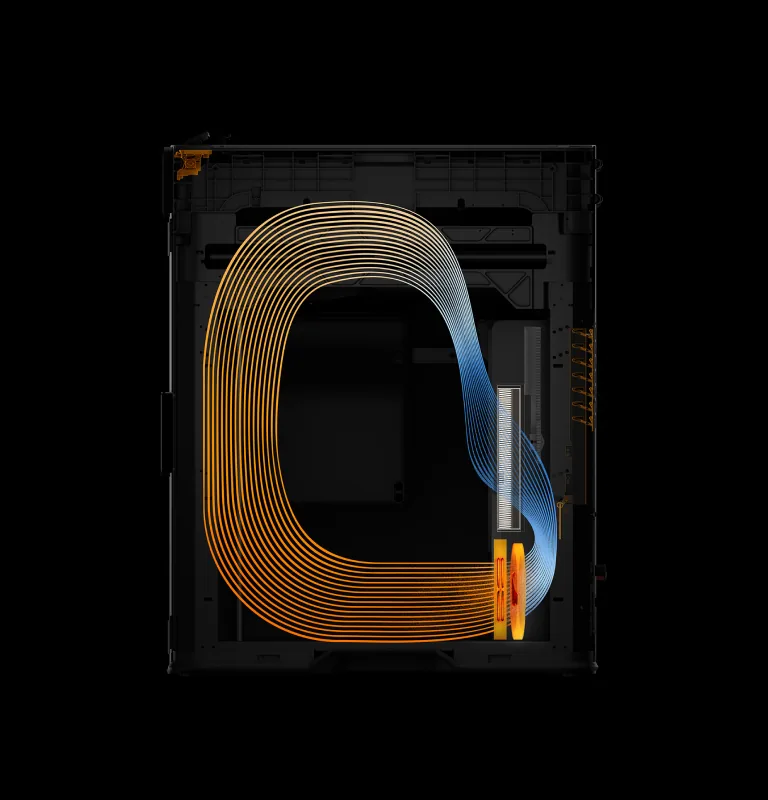

• Active Chamber Heating: Supported
• Max Temperature: 65 ℃
• Pre-filter Grade: G3
• HEPA Filter Grade: H12
• Activated Carbon Filter Type: Granulated Coconut Shell
• VOC Filtration: Superior
• Particulate Matter Filtration: Supported
• Part Cooling Fan: Closed Loop Control
• Cooling Fan for Hot End: Closed Loop Control
• Main Control Board Fan: Closed Loop Control
• Chamber Exhaust Fan: Closed Loop Control
• Chamber Heat Circulation Fan: Closed Loop Control
• Auxiliary Part Cooling Fan: Closed Loop Control
• Filament Supported: PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS; Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA, PPS

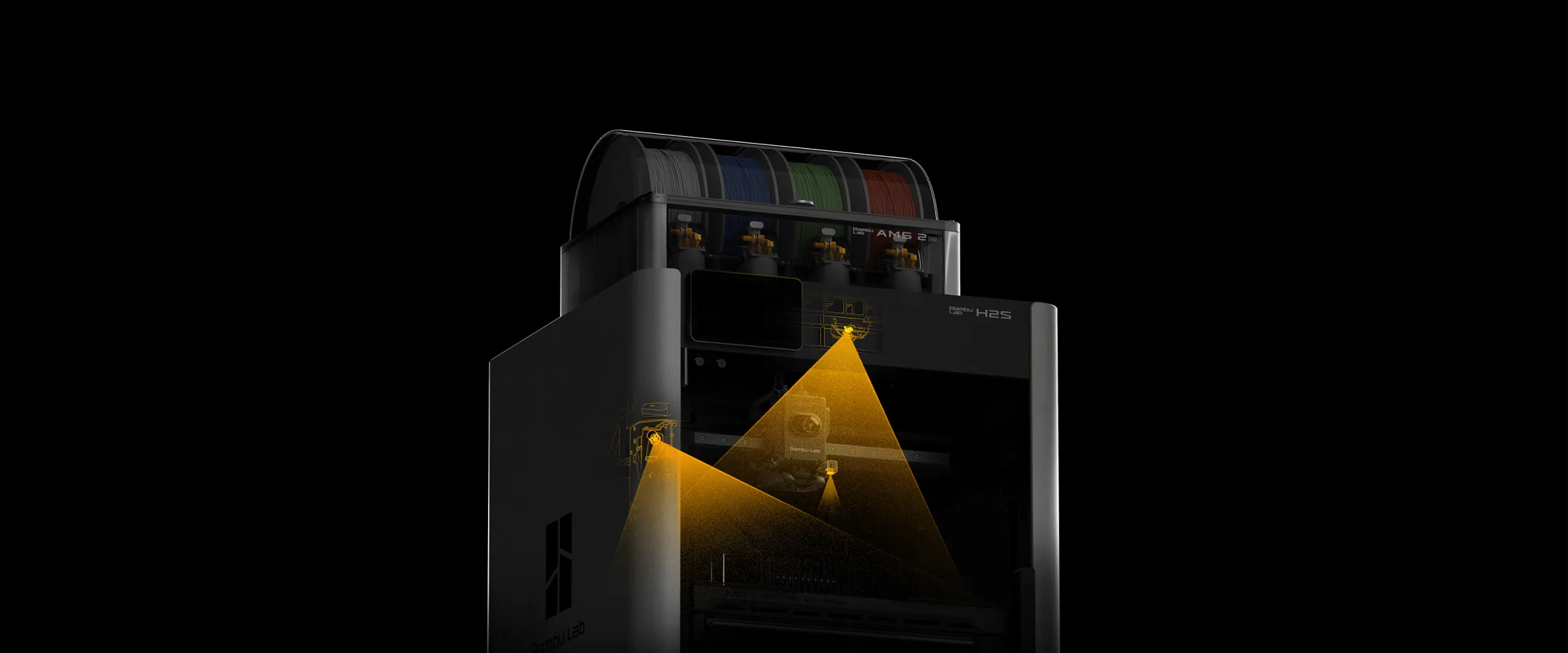

• Live View Camera: Built-in; 1920*1080
• Toolhead Camera: Built-in; 1600*1200
• BirdsEye Camera: Built-in; 3264*2448 (Equipped with Laser Edition)
• Door Sensor: Supported

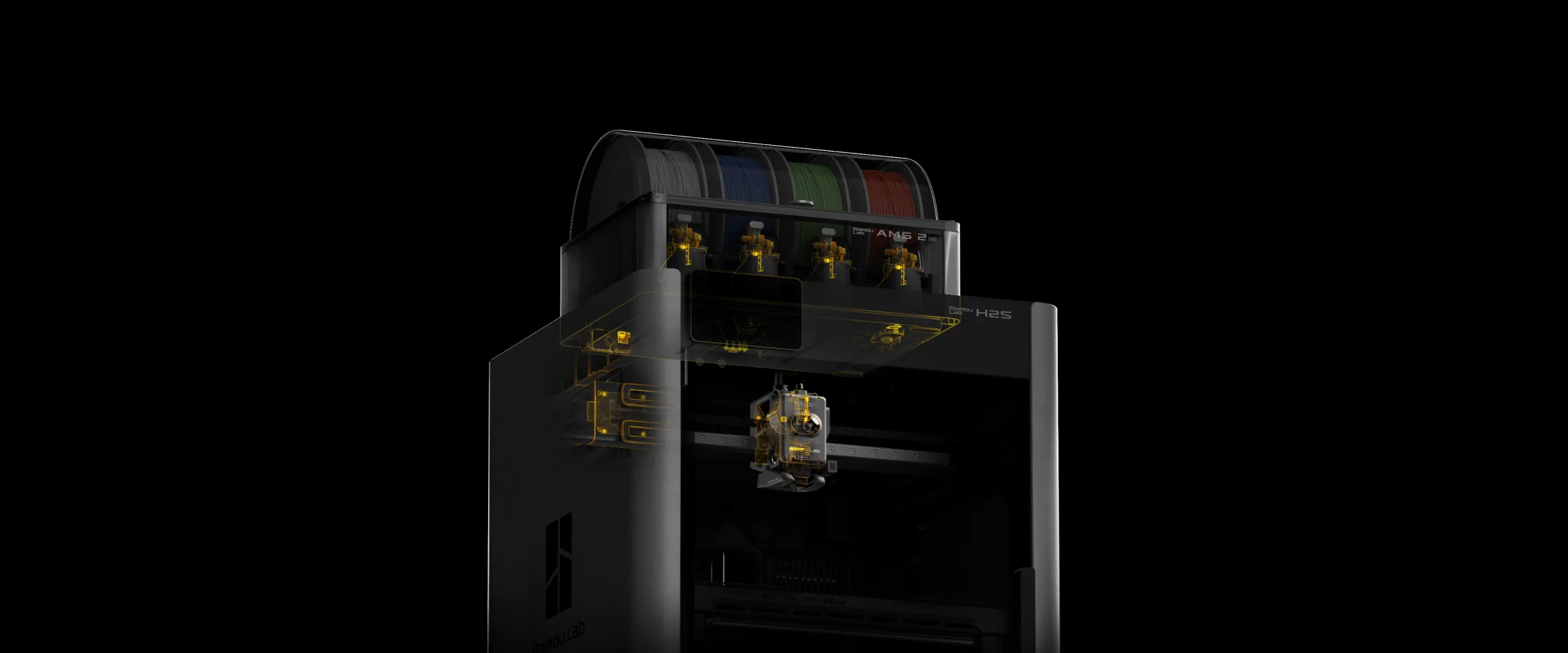

• Filament Run Out Sensor: Supported
• Filament Tangle Sensor: Supported

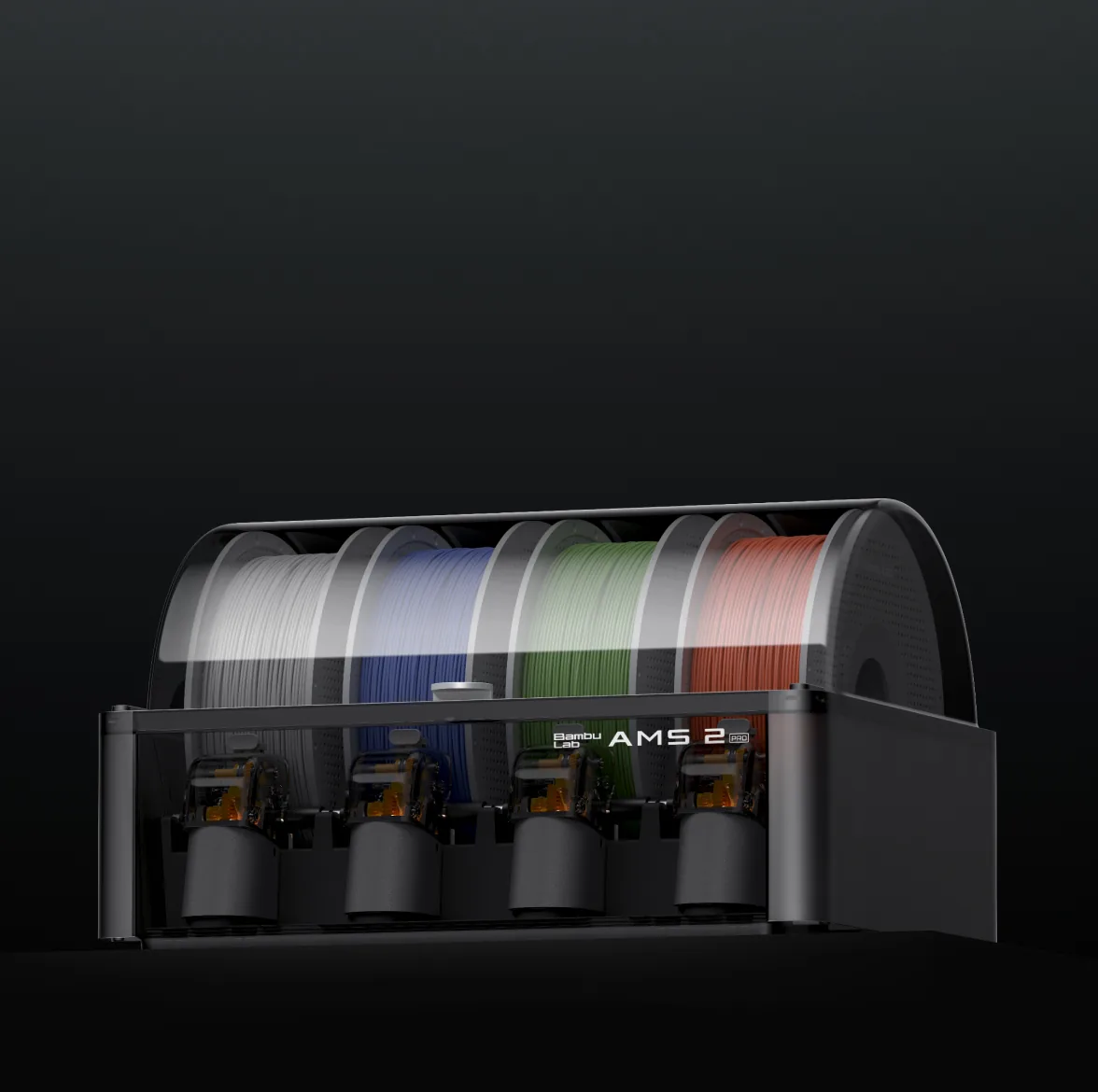

• Filament Odometry: Supported with AMS
• Power Loss Recovery: Supported
• Voltage: 100-120 VAC/200-240 VAC, 50/60 Hz
• Max Power: 2050 W @ 220 V / 1170 W @ 110 V
• Working Temperature: 10 ℃ - 30 ℃
• Touchscreen: 5-inch 720*1280 Touchscreen
• Storage: Built-in 8 GB EMMC and USB Port
• Control Interface: Touchscreen, mobile App, PC App
• Neural Processing Unit: 2 TOPS
• Slicer: Bambu Studio. Supports third-party slicers which export standard G-code, such as SuperSlicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
• Supported Operating System: MacOS, Windows, Linux
• Ethernet: 802.1X Network Access Control
• Wireless Network: Wi-Fi
• Network Kill Switch: Not Available
• Removable Network Module: Not Available
• Operating Frequency: 2412 - 2472 MHz (CE/FCC), 2400 - 2483.5 MHz (SRRC) 5150 - 5850 MHz
• Wi-Fi Transmitter Power (EIRP): 2.4 GHz: < 23 dBm (FCC); < 20 dBm (CE/SRRC/MIC) 5 GHz Band1/2: < 23 dBm (FCC/CE/SRRC/MIC) 5 GHz Band3: < 30 dBm (CE); < 24 dBm (FCC) 5 GHz Band4: < 23 dBm (FCC/SRRC); < 14 dBm (CE)
• Wi-Fi Protocol: IEEE 802.11 a/b/g/n

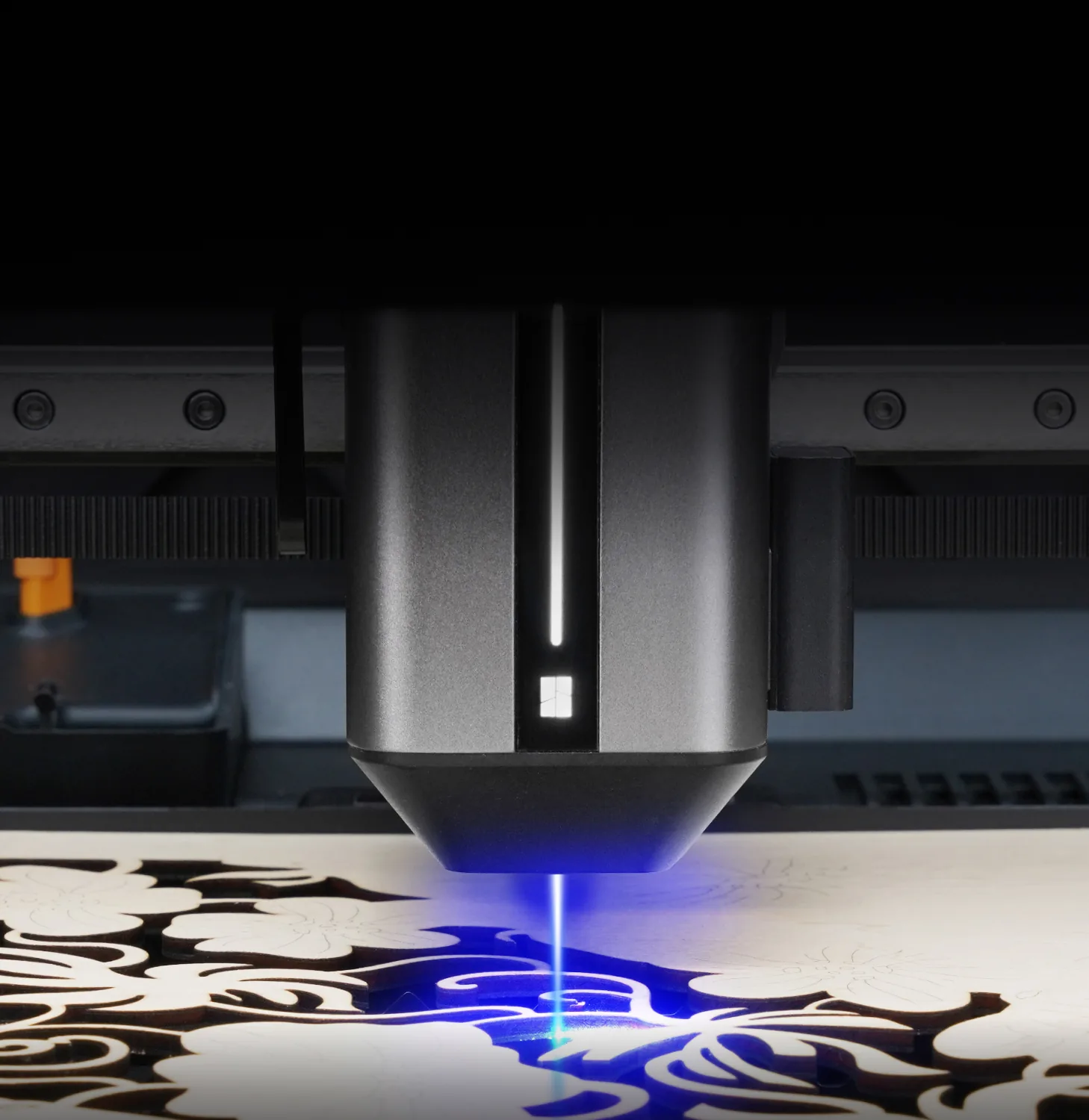

• Laser Type: Semiconductor Laser
• Laser Wavelength: Engraving Laser: 455 nm ± 5 nm Blue Light, Height Measuring Laser: 850 nm ± 5 nm Infrared Light
• Laser Power: 10 W ± 1 W
• Laser Spot Dimension: 0.03 * 0.14 mm²
• Working Temperature: 0 ℃–35 ℃
• Max Engraving Speed: 400 mm/s
• Max Cutting Thickness: 5 mm (Basswood Plywood)
• Laser Safety Class for Laser Module: Class 4
• Overall Laser Safety Class: Class 1
• Engraving Area: H2S: 310 * 260 mm²

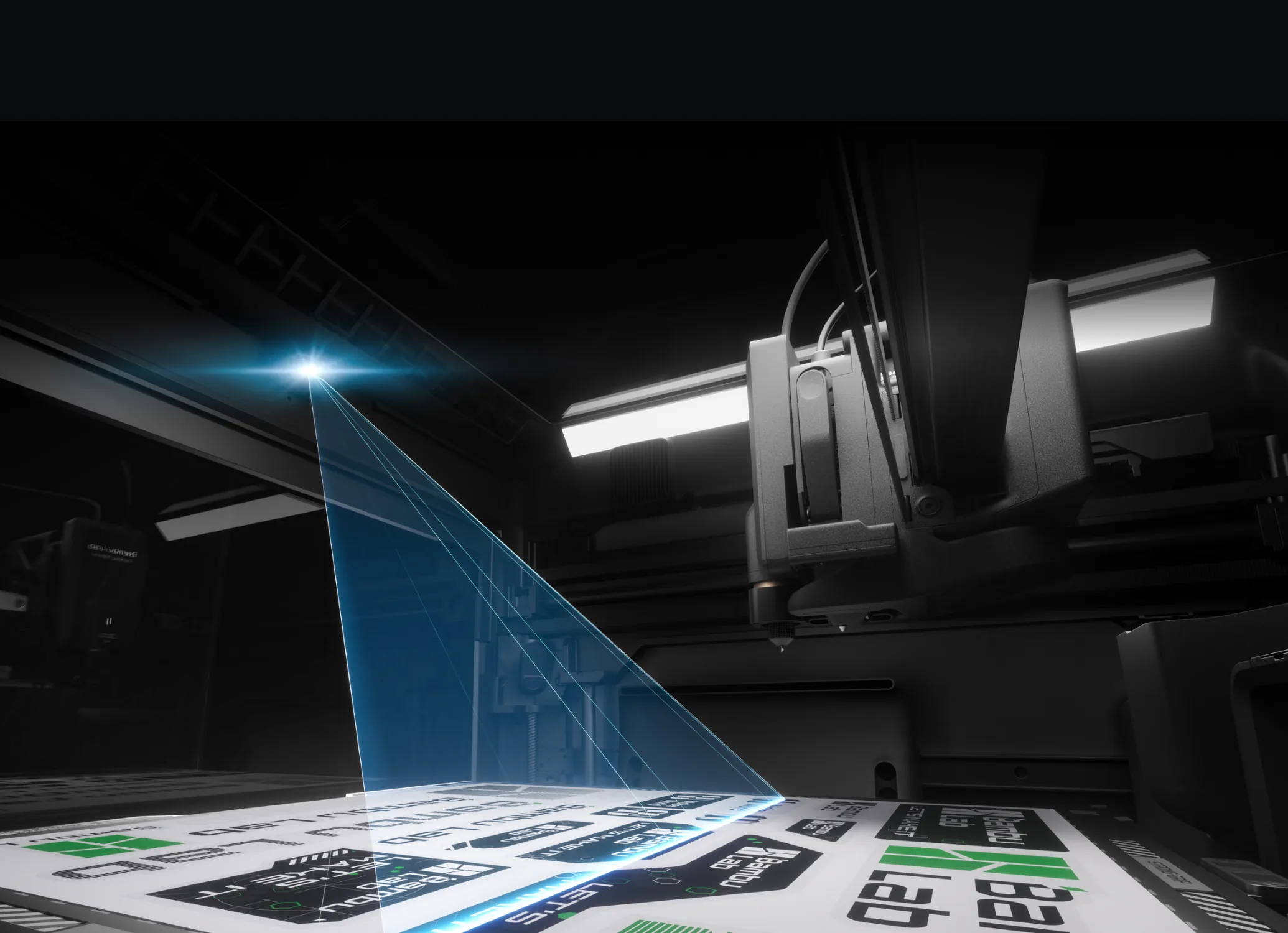

• XY Positioning Method: Visual Positioning
• XY Positioning Accuracy: < 0.3 mm
• Z Height Measuring Method: Micro Lidar
• Z Height Measuring Accuracy: ± 0.1 mm

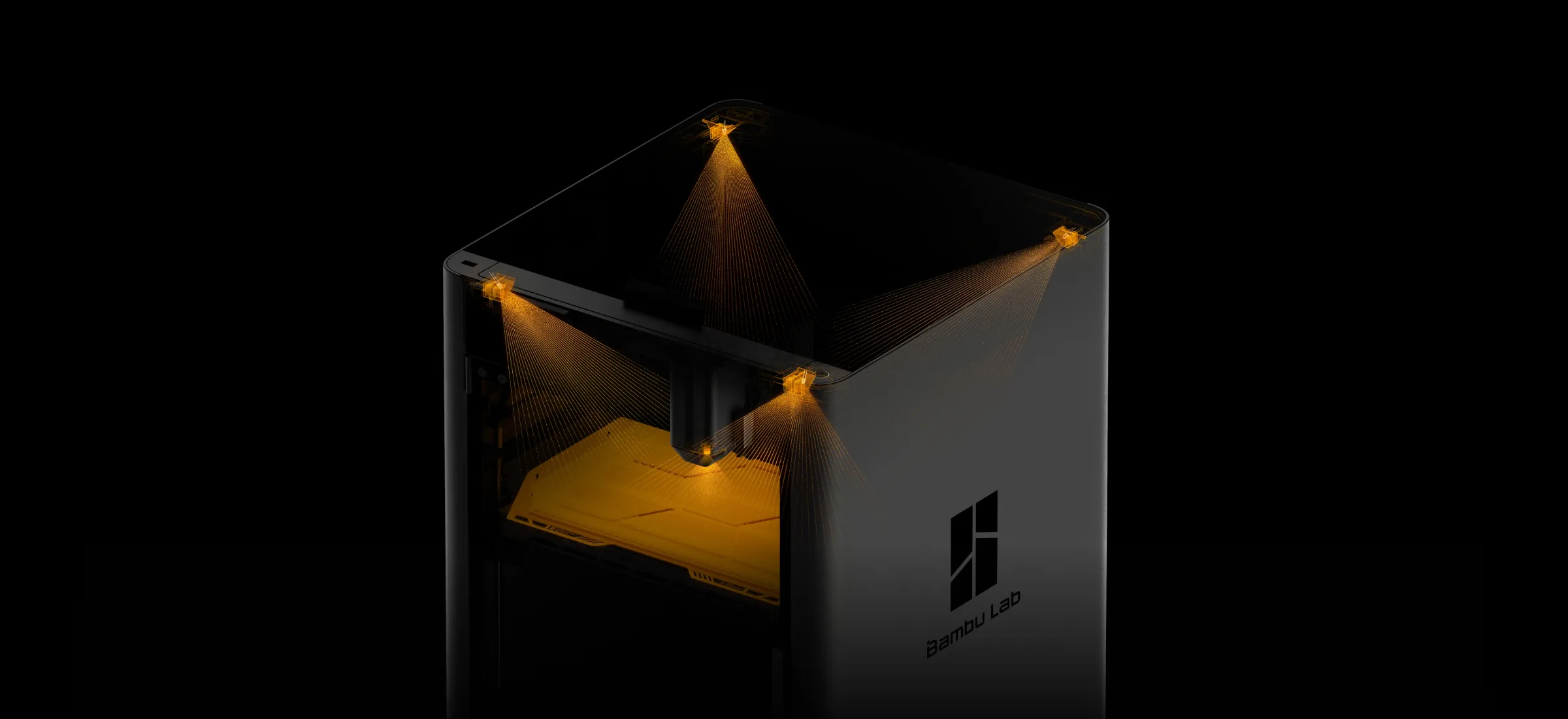

• Flame Detection: Supported
• Temperature Detection: Supported
• Door Sensor: Supported
• Laser Module Installation Detection: Supported
• Safety Key: Included

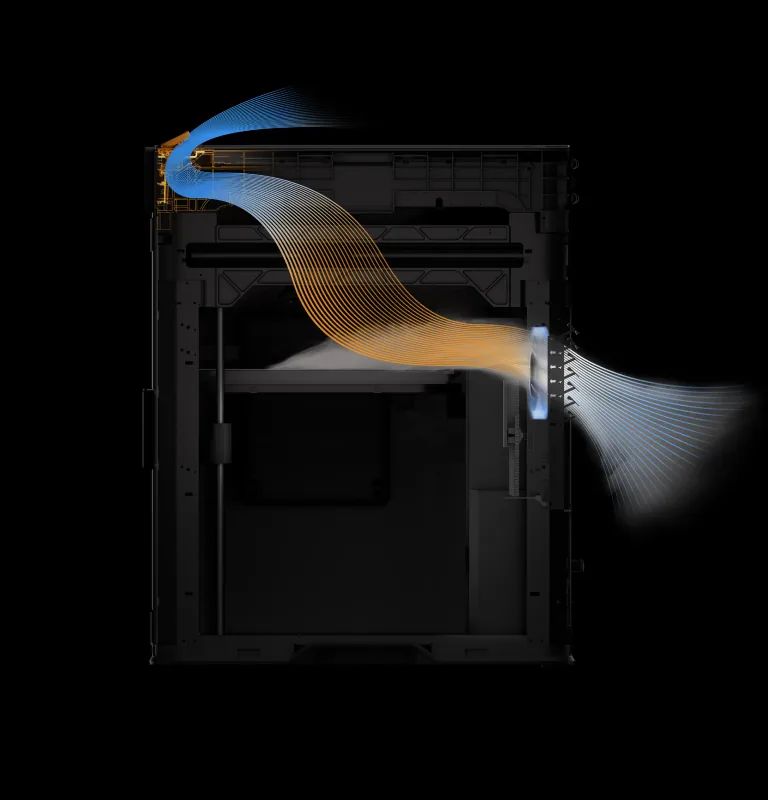

• Air Pump: Built-in; 30 kPa, 30 L/min
• Ventilation Pipe Adapter Outer Diameter: 100 mm
• Supported Material Type: Wood, rubber, metal sheet, leather, dark acrylic, stone, and more
• Cutting Area: H2S: 297.5*300 mm²

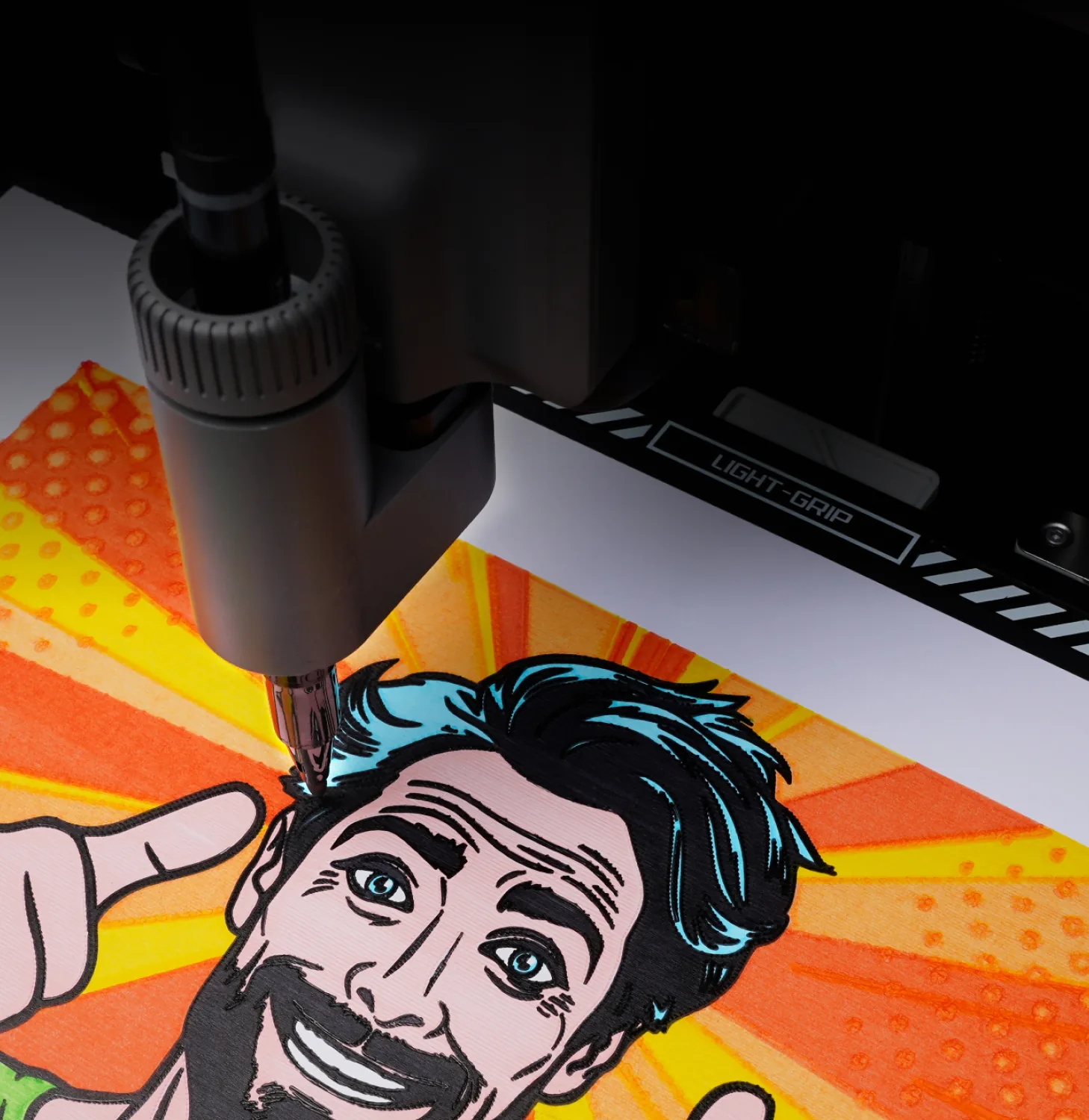

• Drawing Area: 300*255 mm²
• Supported Pen Diameter: 10.5 mm– 12.5 mm
• Cutting Mat Type: Light Grip and Strong Grip Cutting Mats
• Blade Type: 45° *0.35 mm
• Blade Pressure Range: 50 gf–600 gf
• Max Cutting Thickness: 0.5 mm
• Blade and Pen Recognition: Supported
• Cutting Mat Type Detection: Supported
• Supported Image Type: Bitmap and Vector Images
• Supported Material Type: Paper, PVC, vinyl, leather, and more
